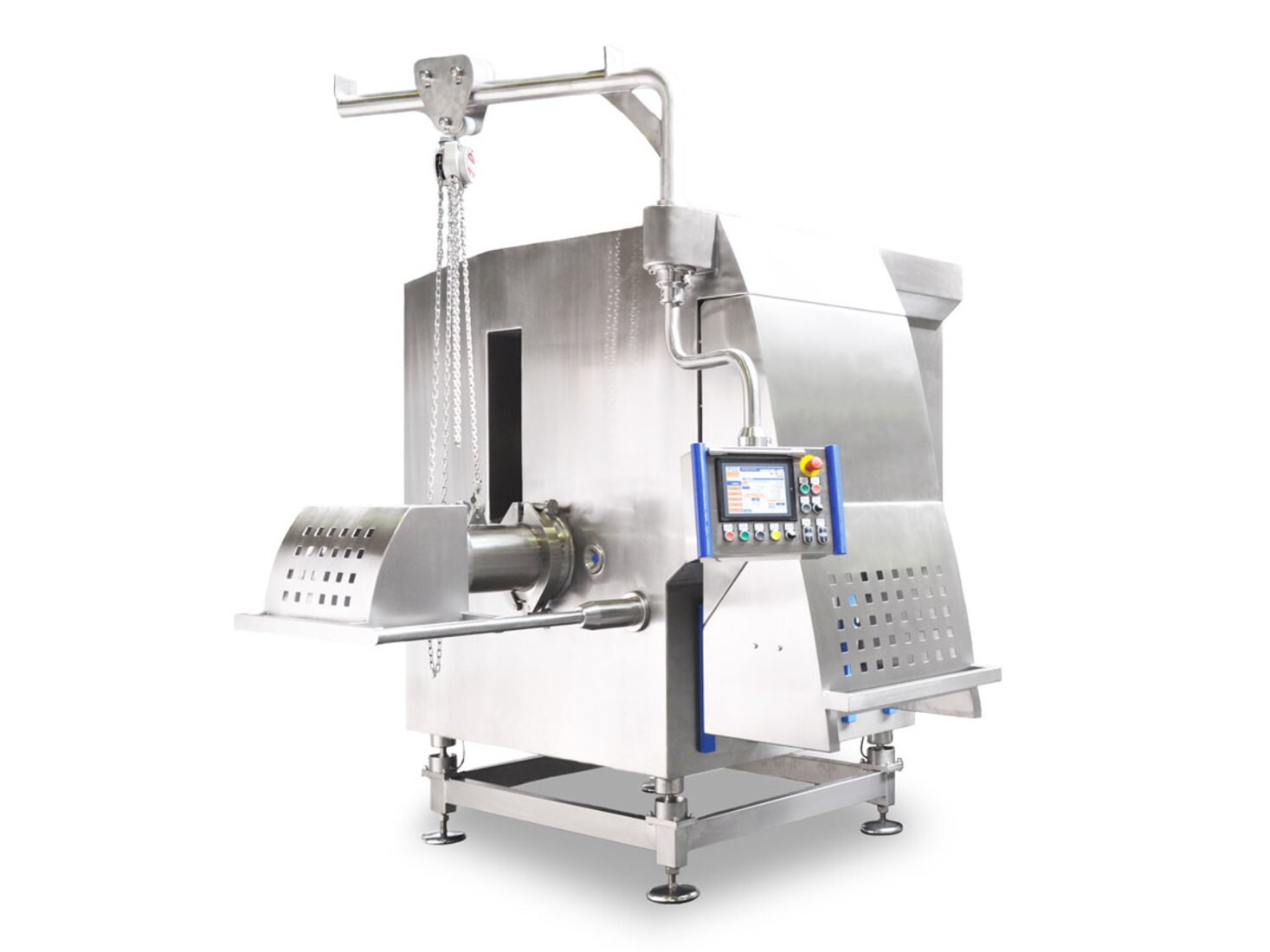

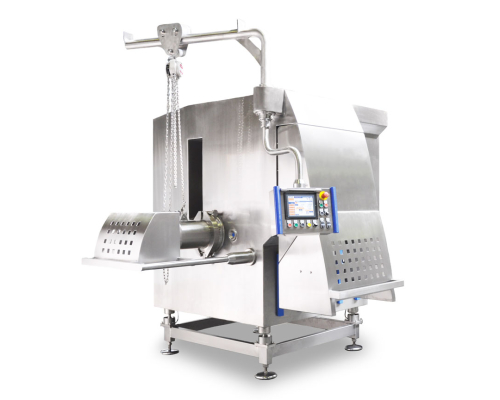

PSS SMGAs are a modern combination of Speed Mixers and Speed Grinders. In the mixing section they ensure a gentle and quality mixing and in the grinding section an excellent product quality ranging from coarse to very fine grinding.

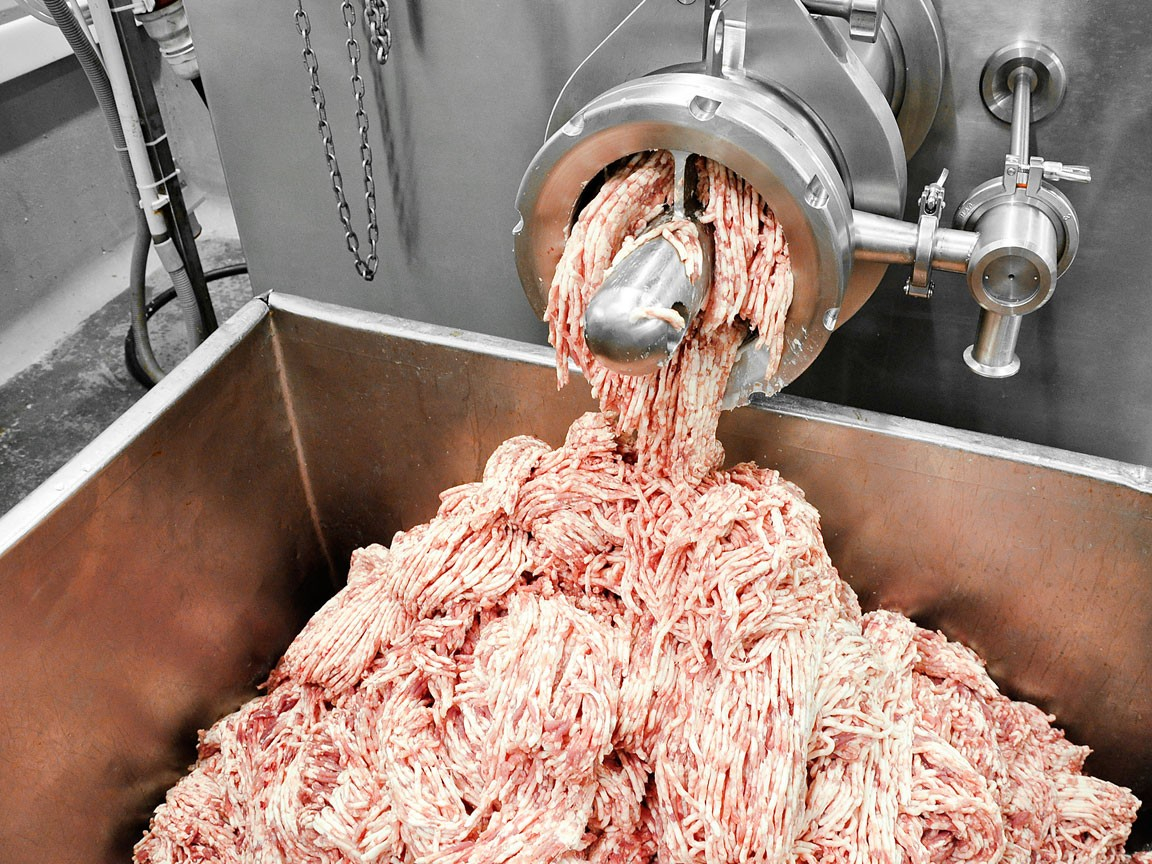

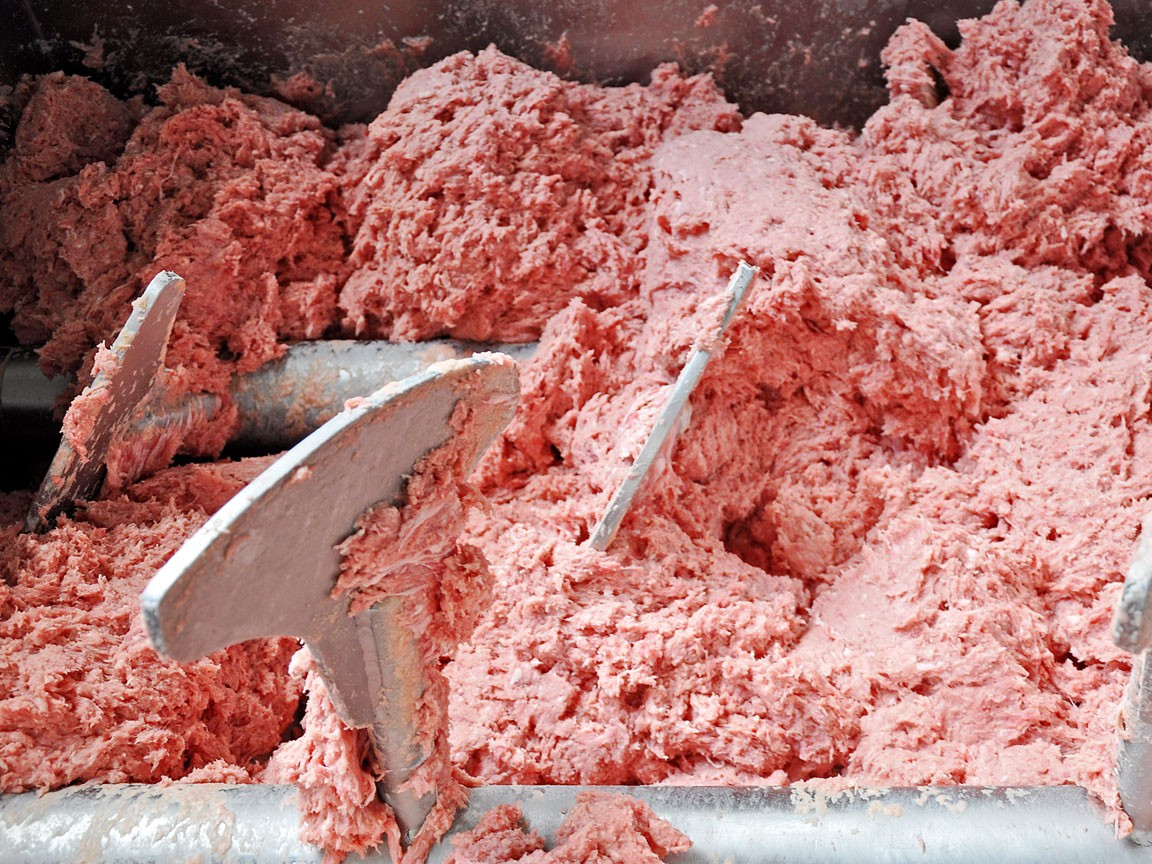

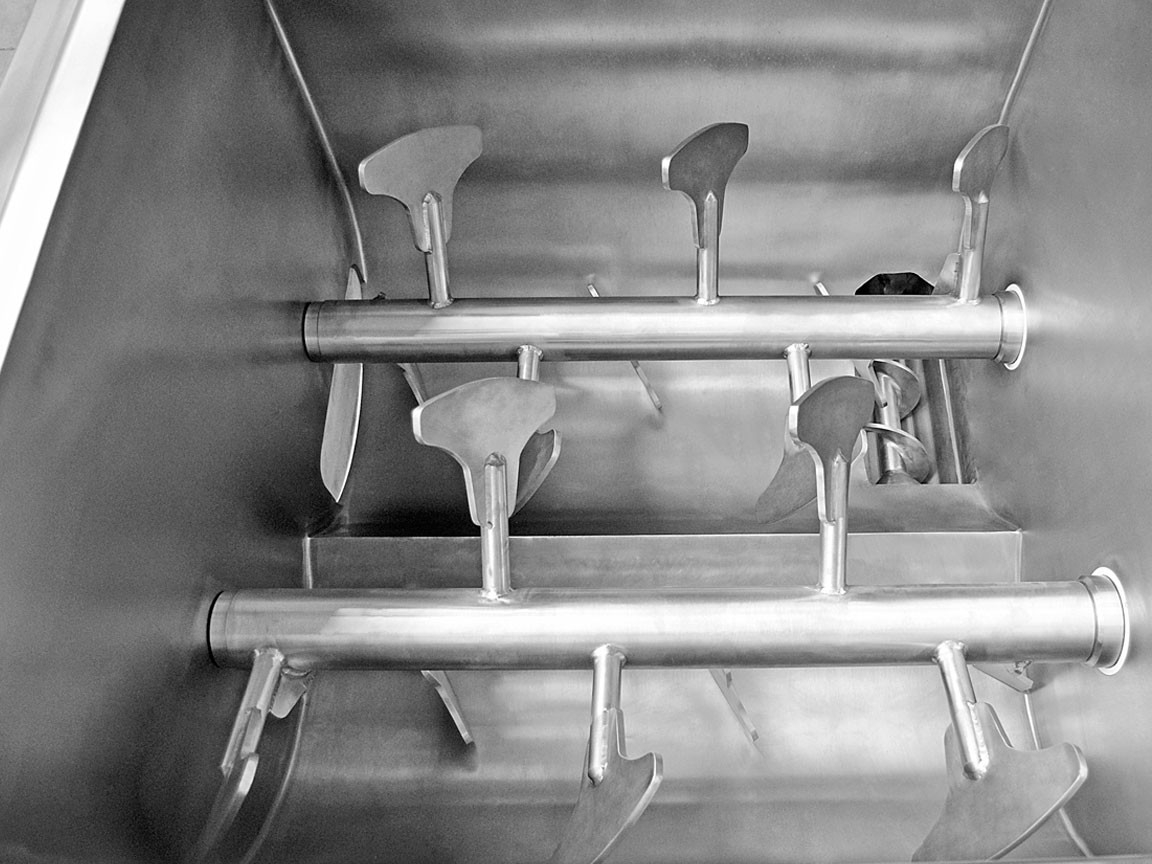

PSS SMGAs are multifunction devices with a compact, space-saving design. The rotating overlapping paddles gently move the product in every direction to give it the desired structure. The grinding worm area is located in the bottom part of the two-level hopper, where the worm efficiently moves the material to the grinding set.

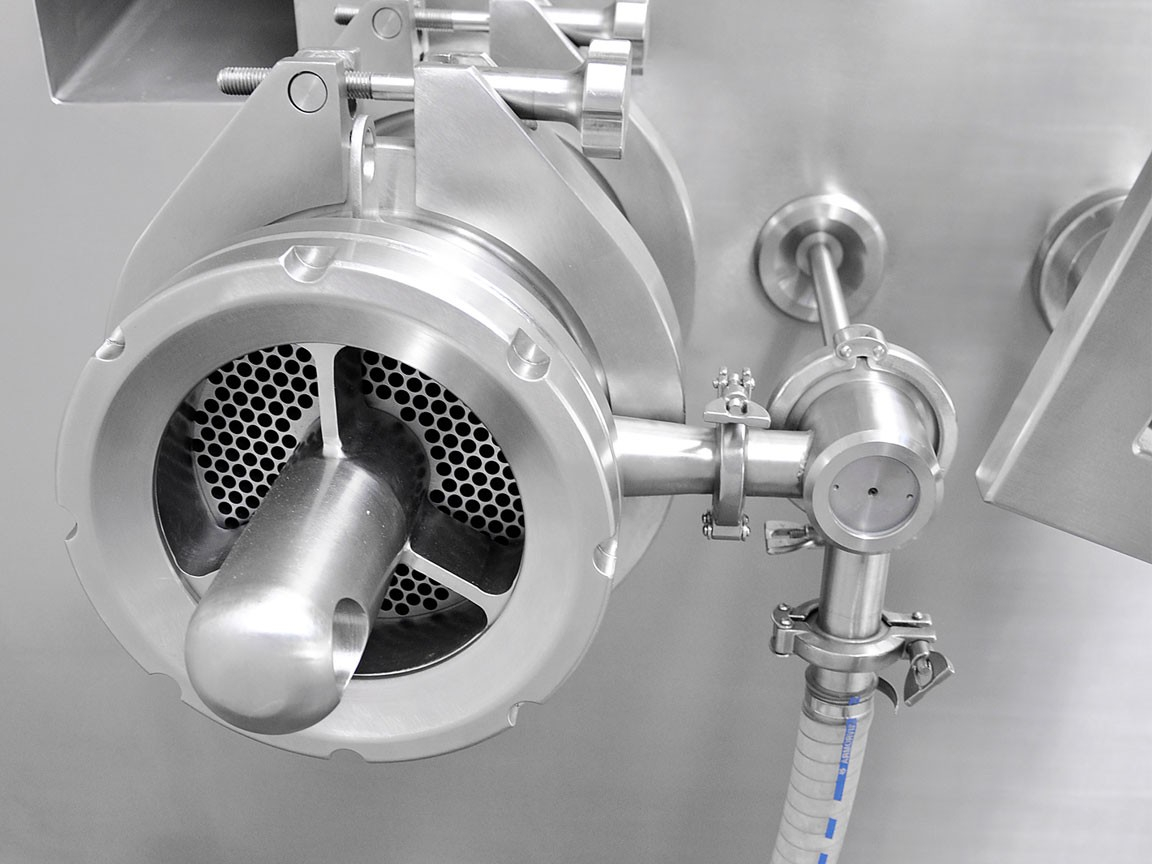

The desired structure is achieved according to a choice of grinding set. PSS SMGAs are supplied with frequency inverters in both mixing and grinding sections, that enables speed regulation and excellent product structure.
Options
- PSS BES bone elimination system
- Dust lid without sealing
- Grid cover
- Plate cover with sealing
- Weighing system on frame
- Temperature sensor
- Cooling system of top injection N2
- Cooling system of top injection CO2
- Cooling system of bottom injection CO2
- Steam injection system
- Water dosing
- Mirror-polished worm
- Mirror-polished hopper and paddles
- Inspection platform
- Remote access via internet
