Application:

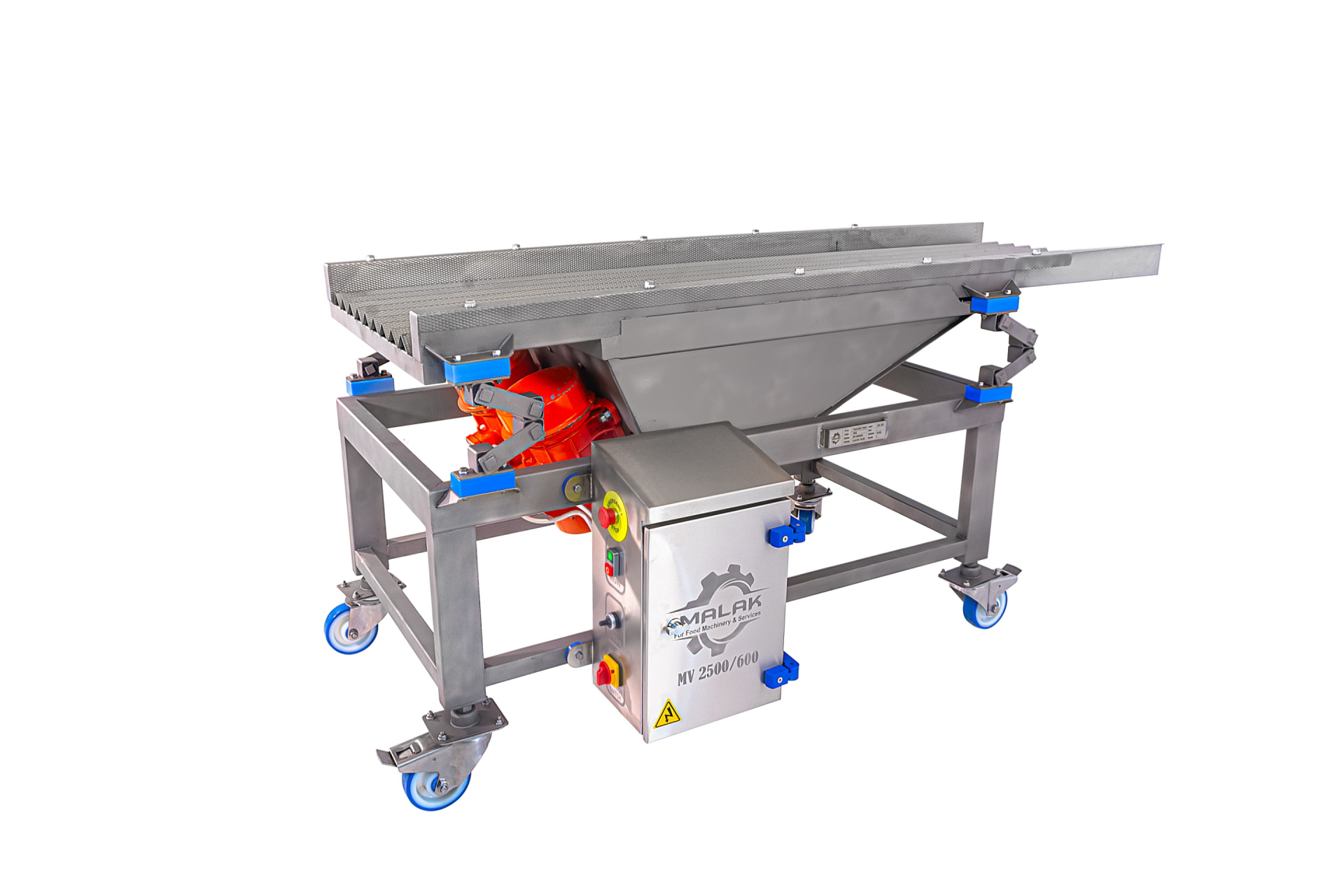

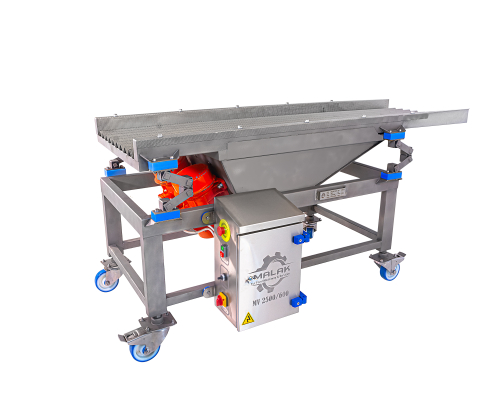

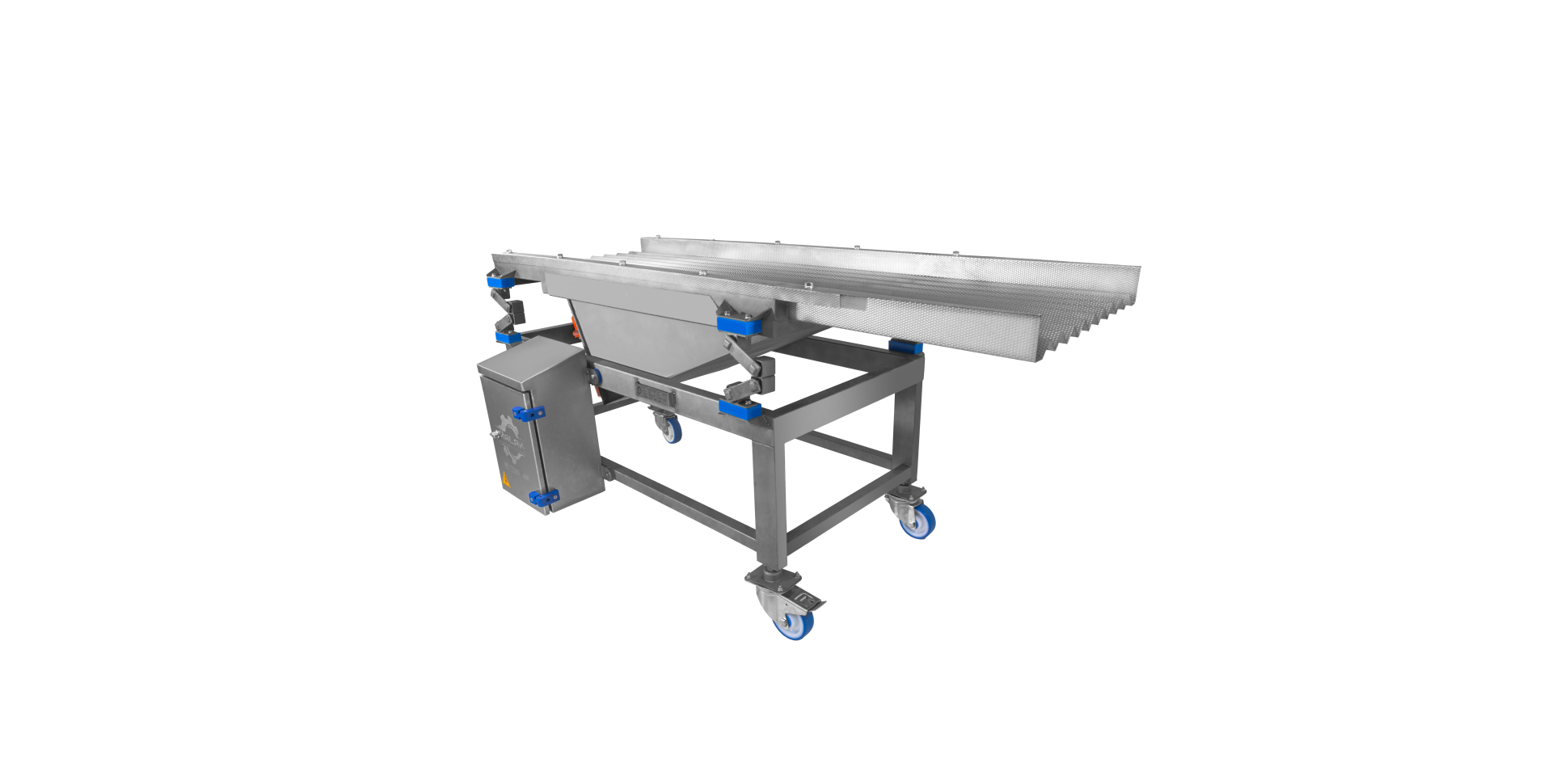

Conveyor Vibratory system uses a pan and a vibratory motor to move product forward due to the vibration of the pan. Vibratory conveyors are ideal for food-grade applications that require a sanitary. and minimal maintenance solution,with (8) product lanes and 2" wide troughs, with amount of product per hour – depending on materials and application.
Motors: Tow three phase vibrator motors.
Speed: Adjustable speed.

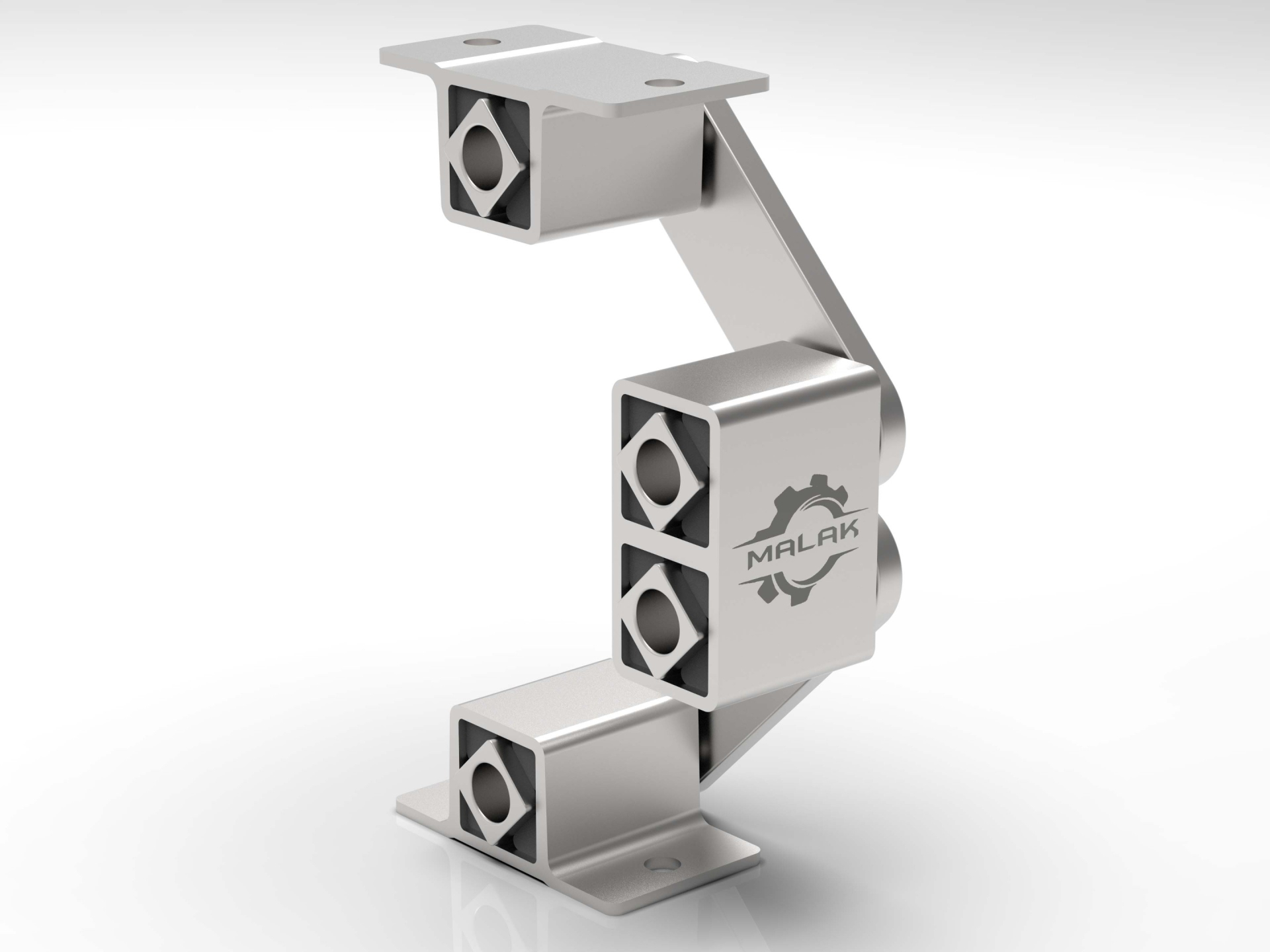

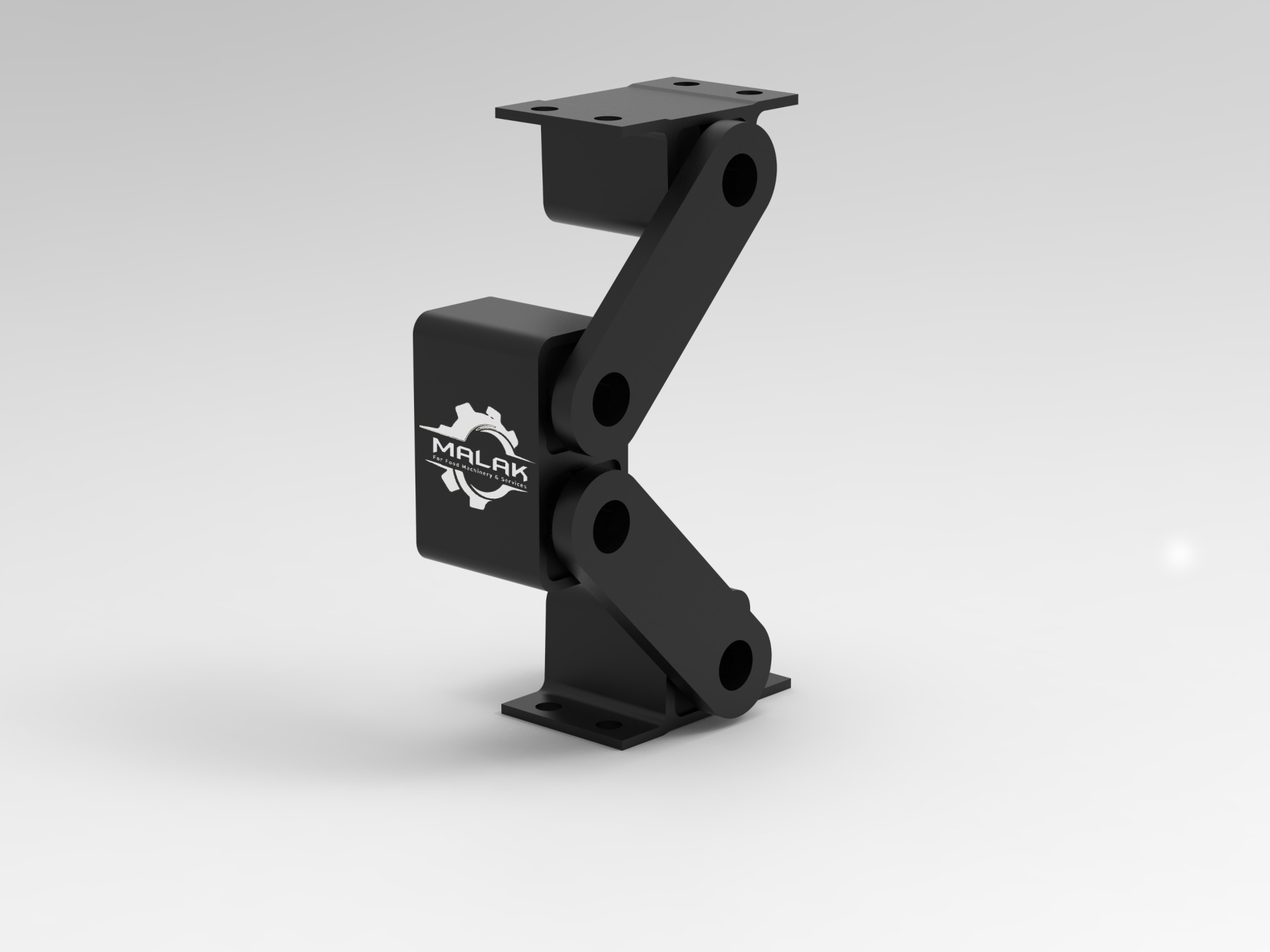

Vibration system: With four stainless steel RUBBER ISOLATION Allow for longevity and whisper-quiet operation, with 97% vibration isolation efficiency.
Castors: 4 stainless steel swivel wheels.
Wiring: 3/PE/N, 50 Hz, 230/400 V.
Control: Waterproof electrical panel with Speed Inverter 1 HP

Material: Stainless steel AISI 304.
Finish: Polished surfaces.
